Built with a sturdy aluminium frame, it offers flexible push or pull options to suit your space. Door is primed, ready to paint. See our stud work page for more information.
This kit is suitable for:
- Minimum stud 63mm - No max
- 12.5mm standard plasterboard

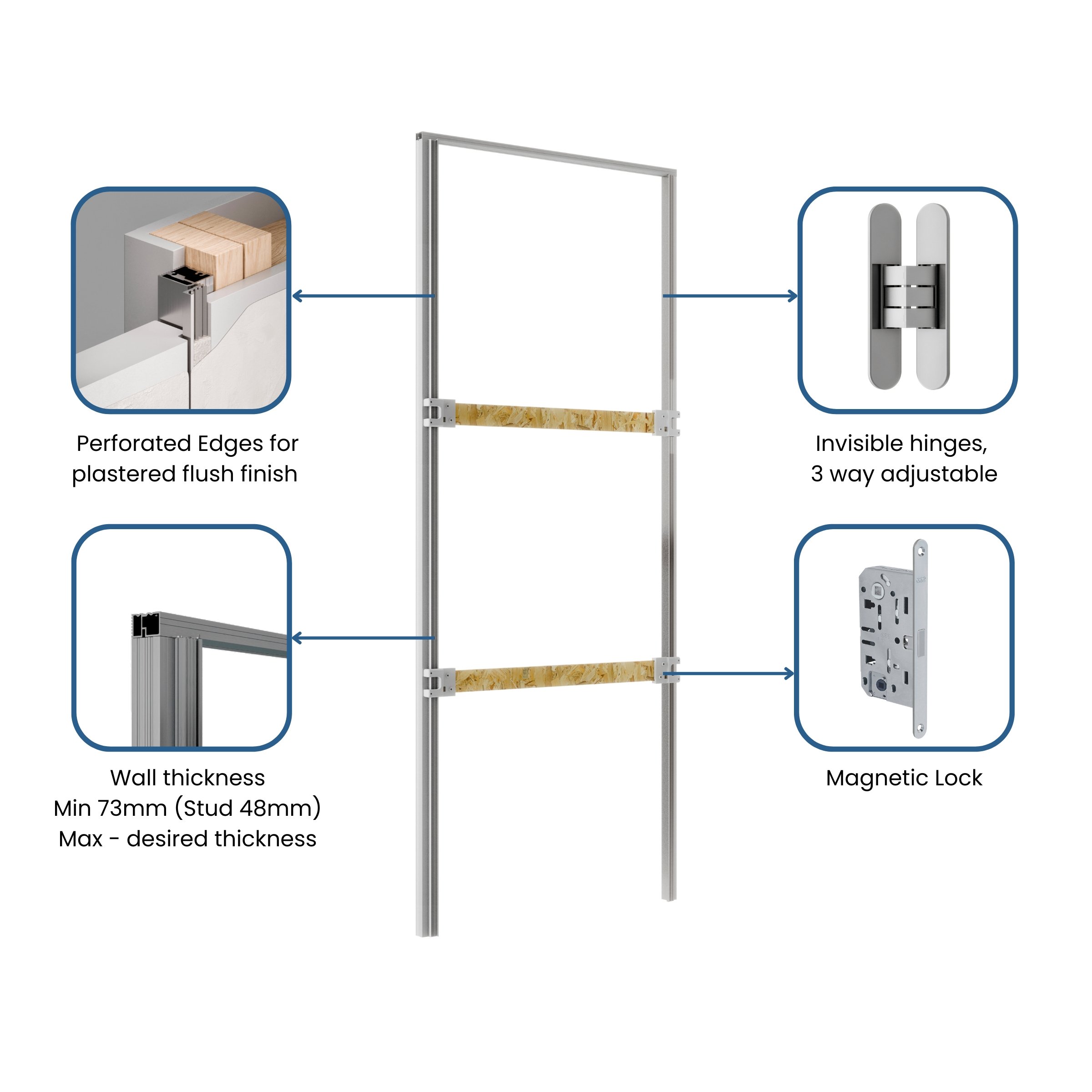

Kit Contents:

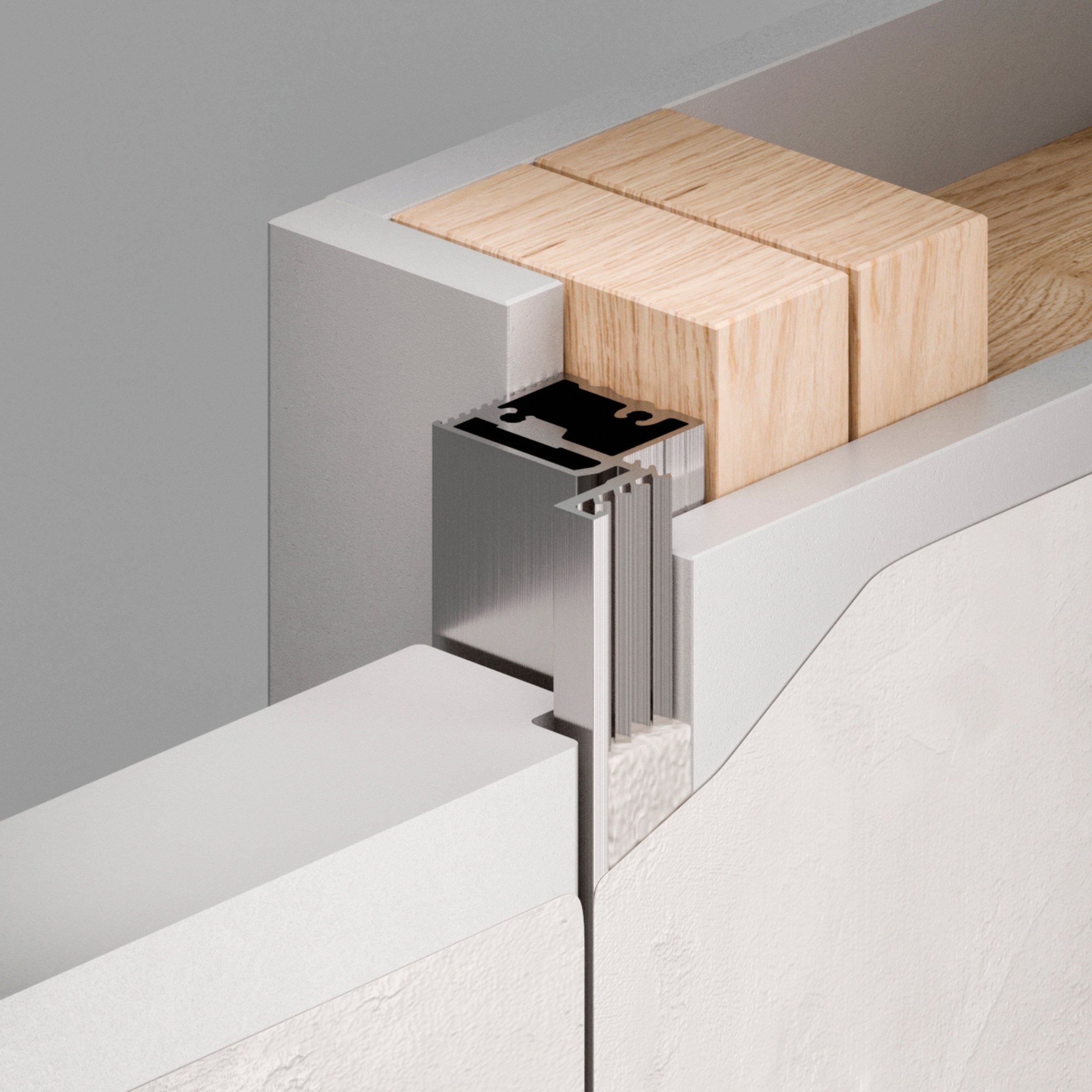

- Aluminium door frame
- 44mm solid core flush primed door
- Magnetic latch (Cylinder, Handle or Thumb turn)
- Bumper seals
- Concealed hinges

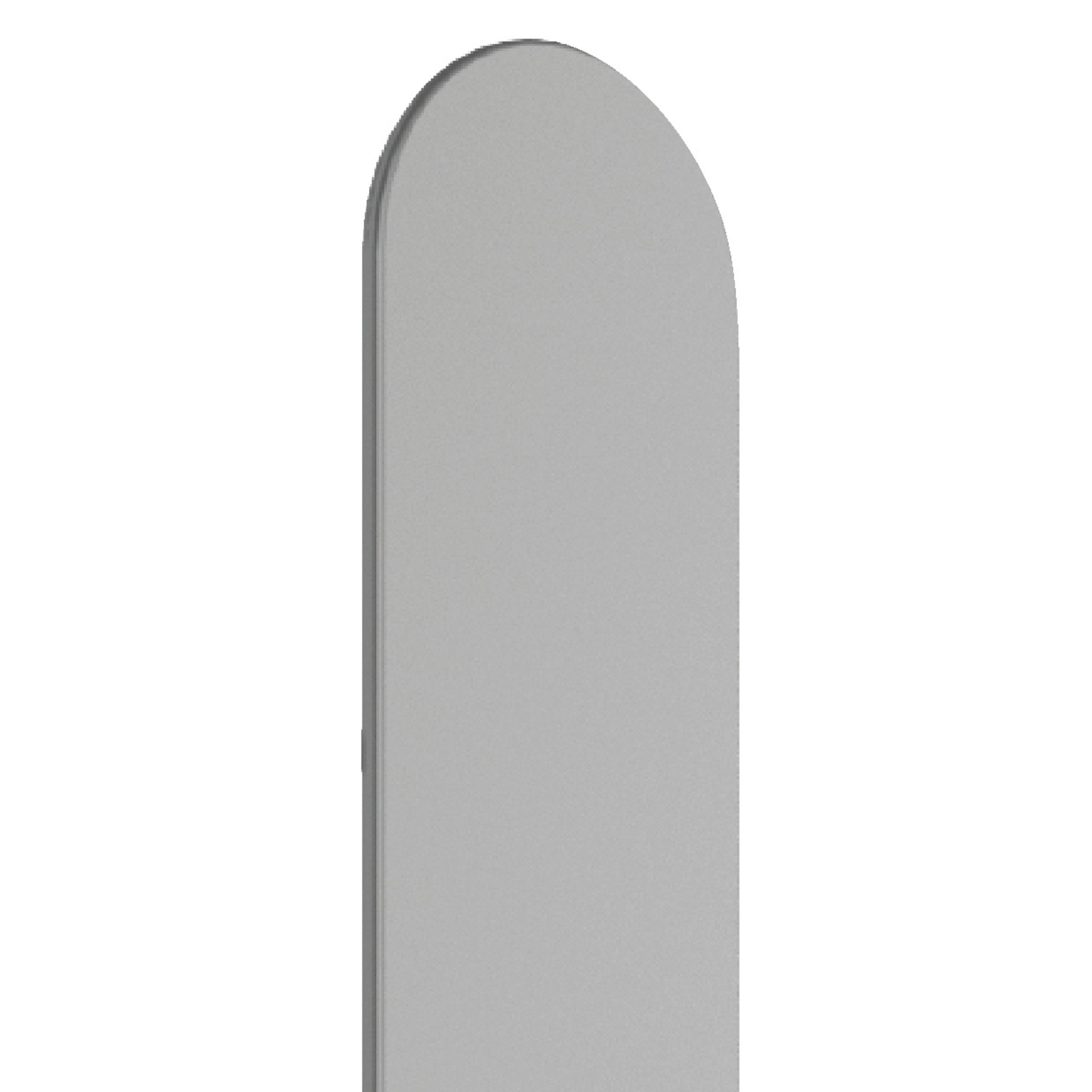

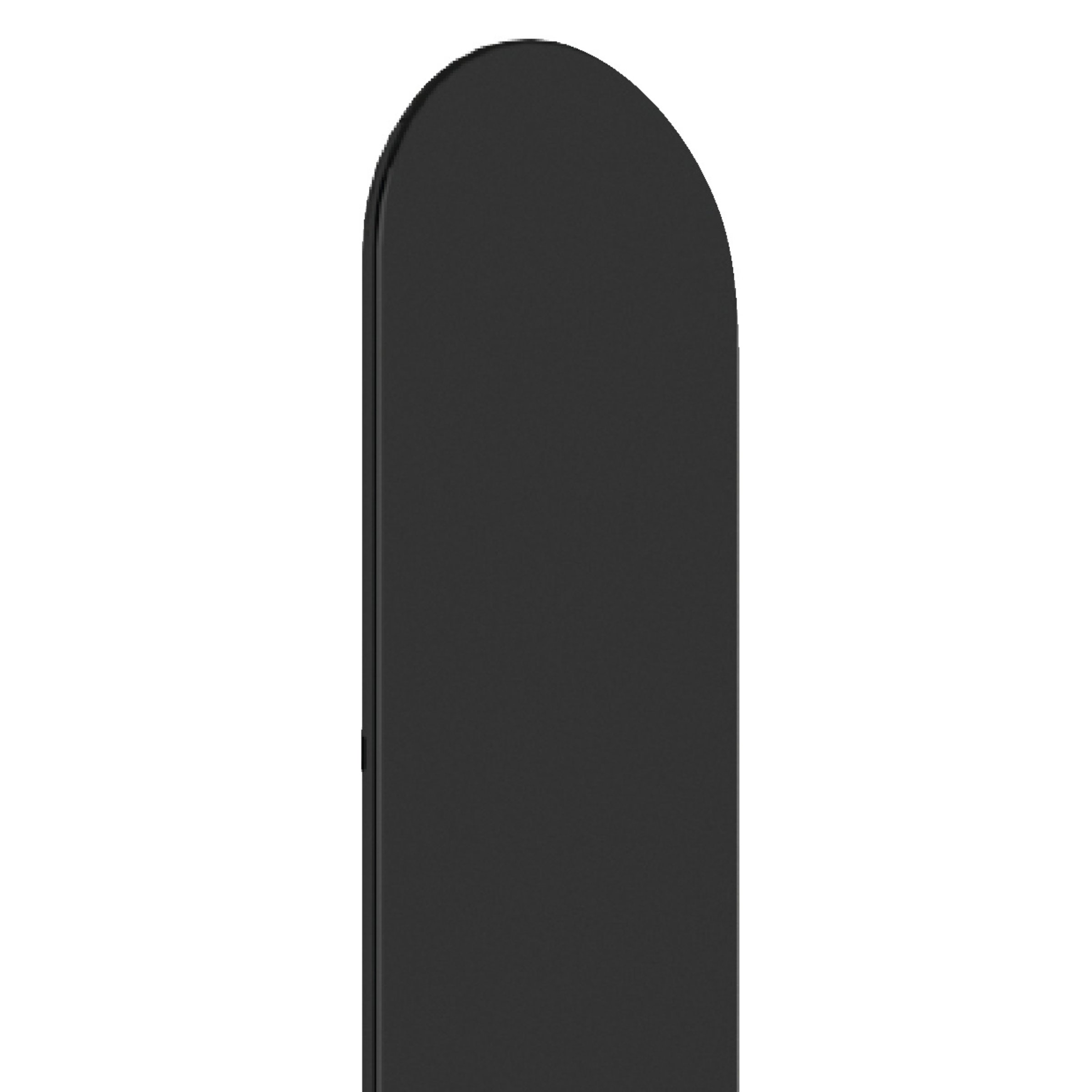

- Hinge cover plates and strike plate
Please note that handles are not included and can be purchased separately. See our accessories range.
We do not recommend Ultra Flush doors for areas where there is a significant temperature difference between either side of the opening, as rapid changes in heat can affect all types of wooden doors.

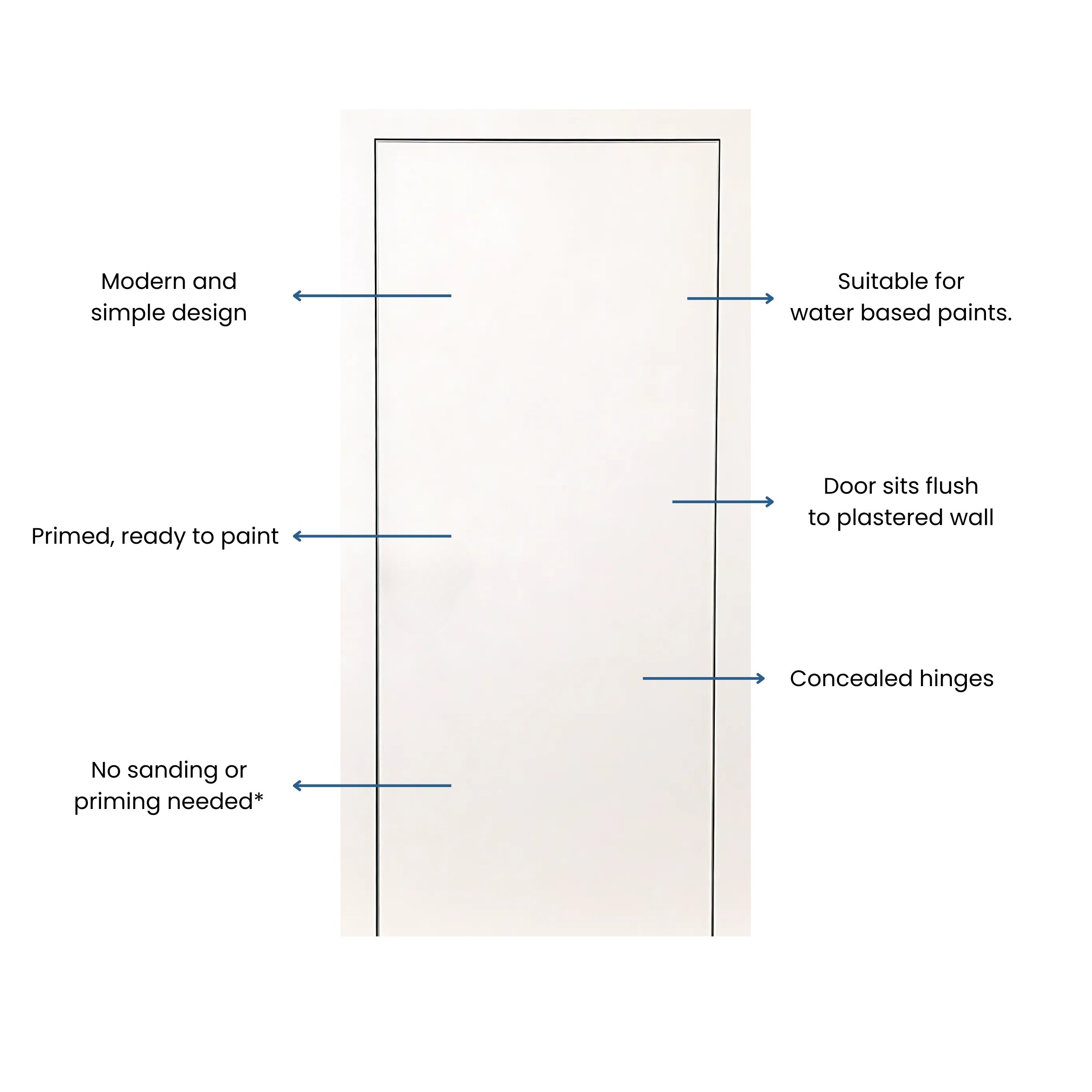

Ultra Flush Door System
- No face sanding or priming required ultra-smooth and opaque surface*
- New polymer face will accept a wide range of paint types
- All Primed 2 Go products are FSC® Certified
*These doors are specifically routed/serviced to suit our frame after the finish of the door has been applied, therefore the rebated back section and rebated front will need to be primed - priming instructions below.

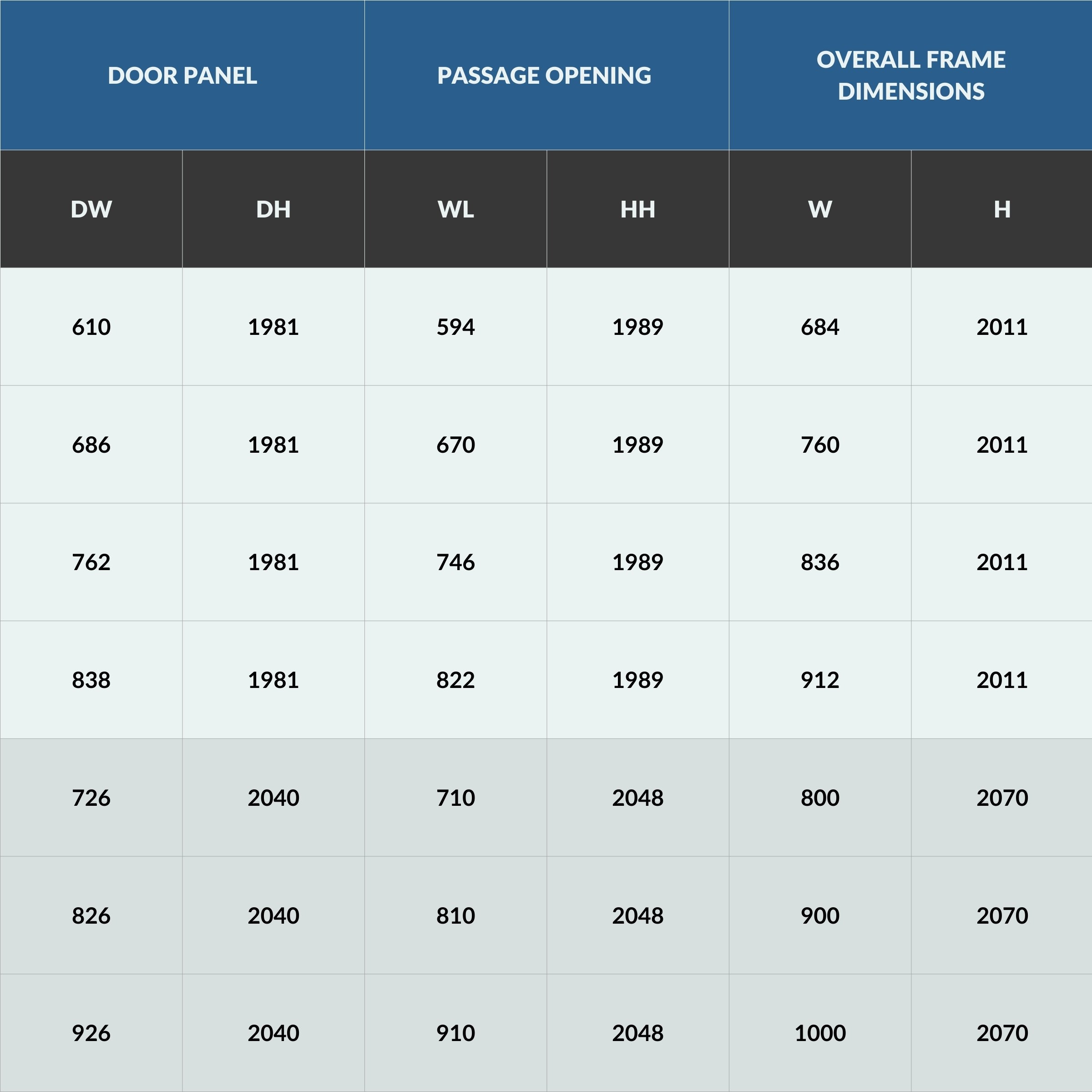

| DIMENSIONS (All measurements in mm) | |||||
|---|---|---|---|---|---|
| DOOR PANEL SIZE (Door 44mm thick) | PASSAGE OPENING (Walkthrough space once installed) | OVERALL FRAME OPENING (Space needed in the wall) | |||
| Door Width | Door Height | Width | Height | Width | Height |
| 610 | 1981 | 594 | 1989 | 684 | 2011 |
| 686 | 1981 | 670 | 1989 | 760 | 2011 |
| 762 | 1981 | 746 | 1989 | 836 | 2011 |
| 838 | 1981 | 822 | 1989 | 912 | 2011 |
| 726 | 2040 | 710 | 2048 | 800 | 2070 |
| 826 | 2040 | 810 | 2048 | 900 | 2070 |
| 926 | 2040 | 910 | 2048 | 1000 | 2070 |

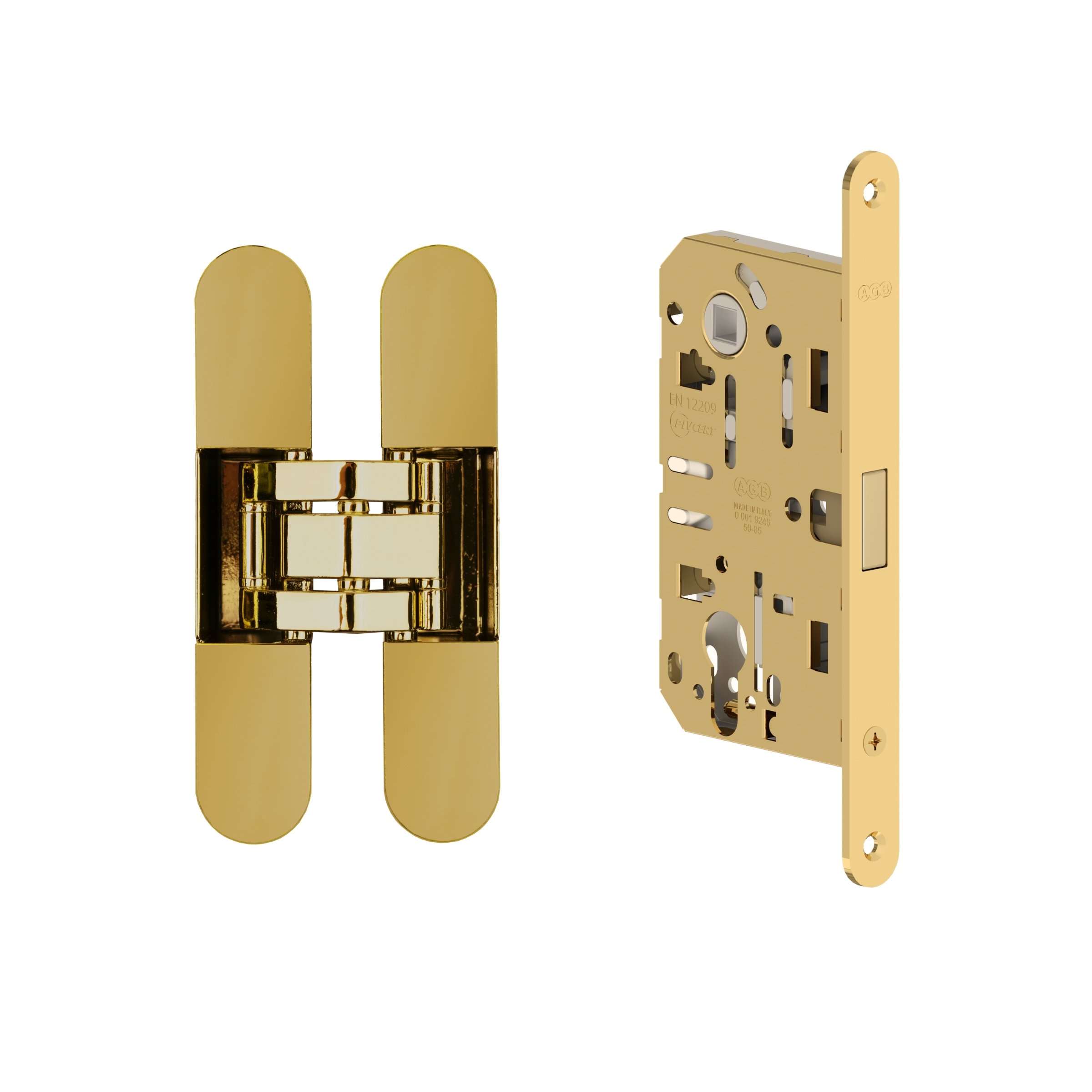

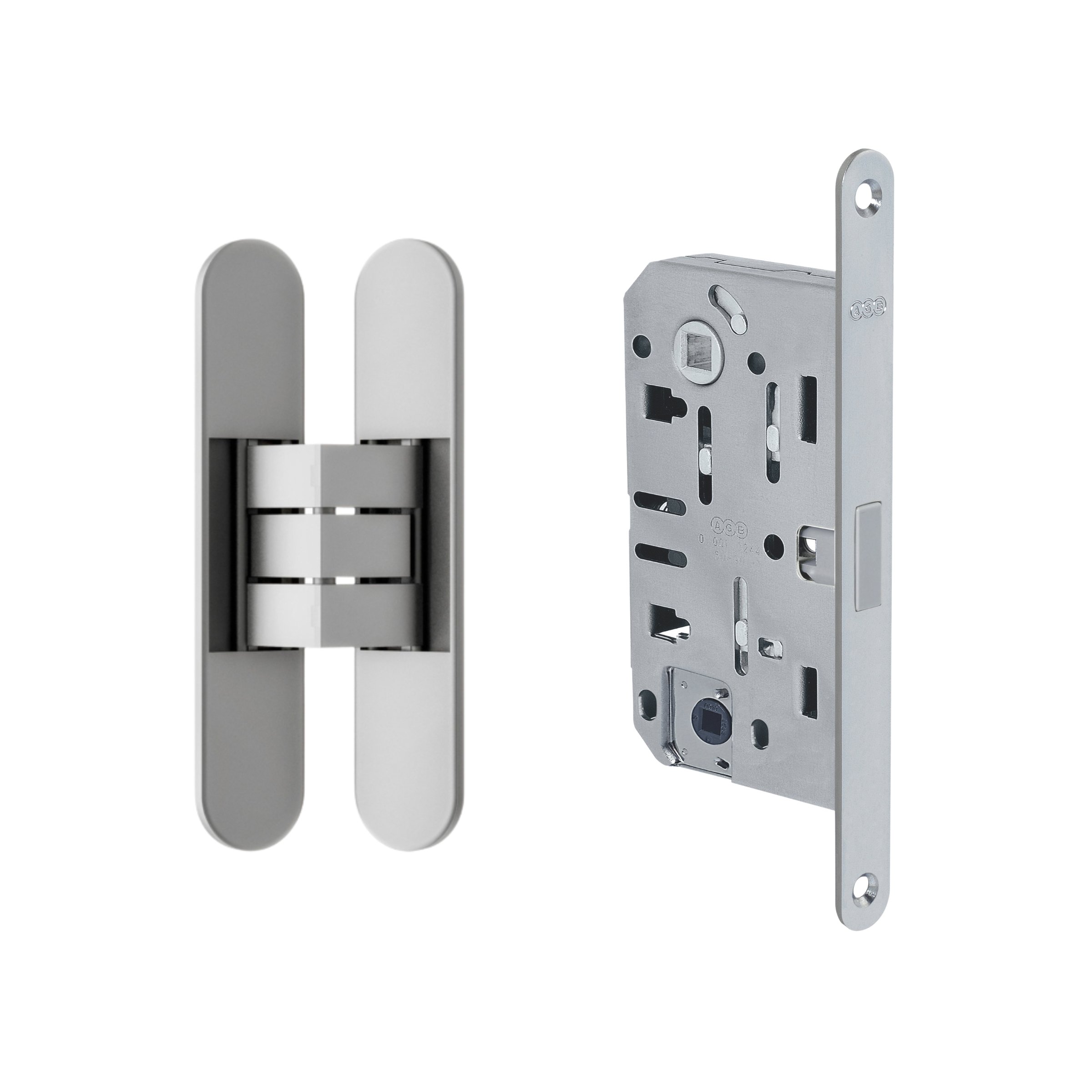

Latch and Hinge Finishes:
- Satin Nickel

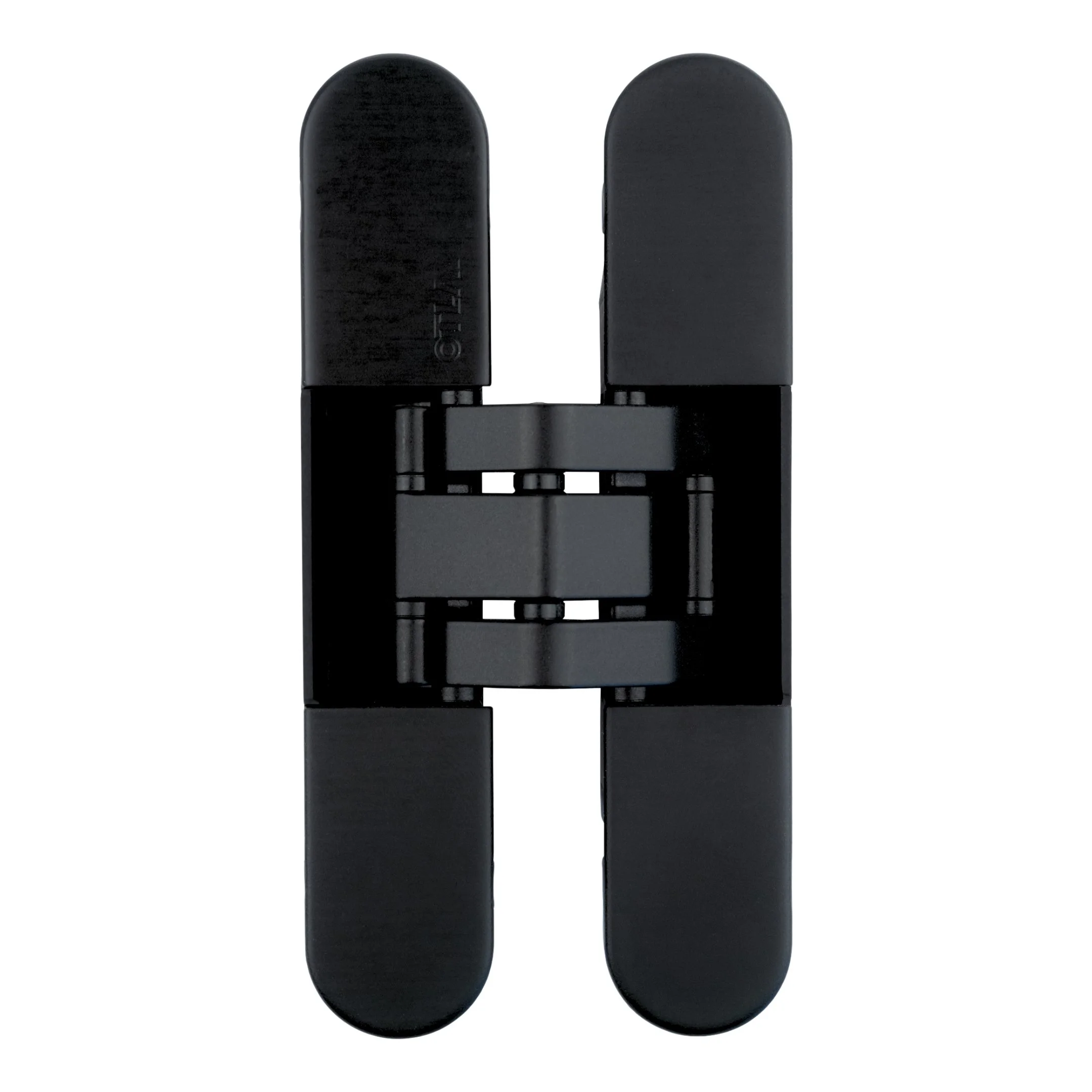

- Matt Black

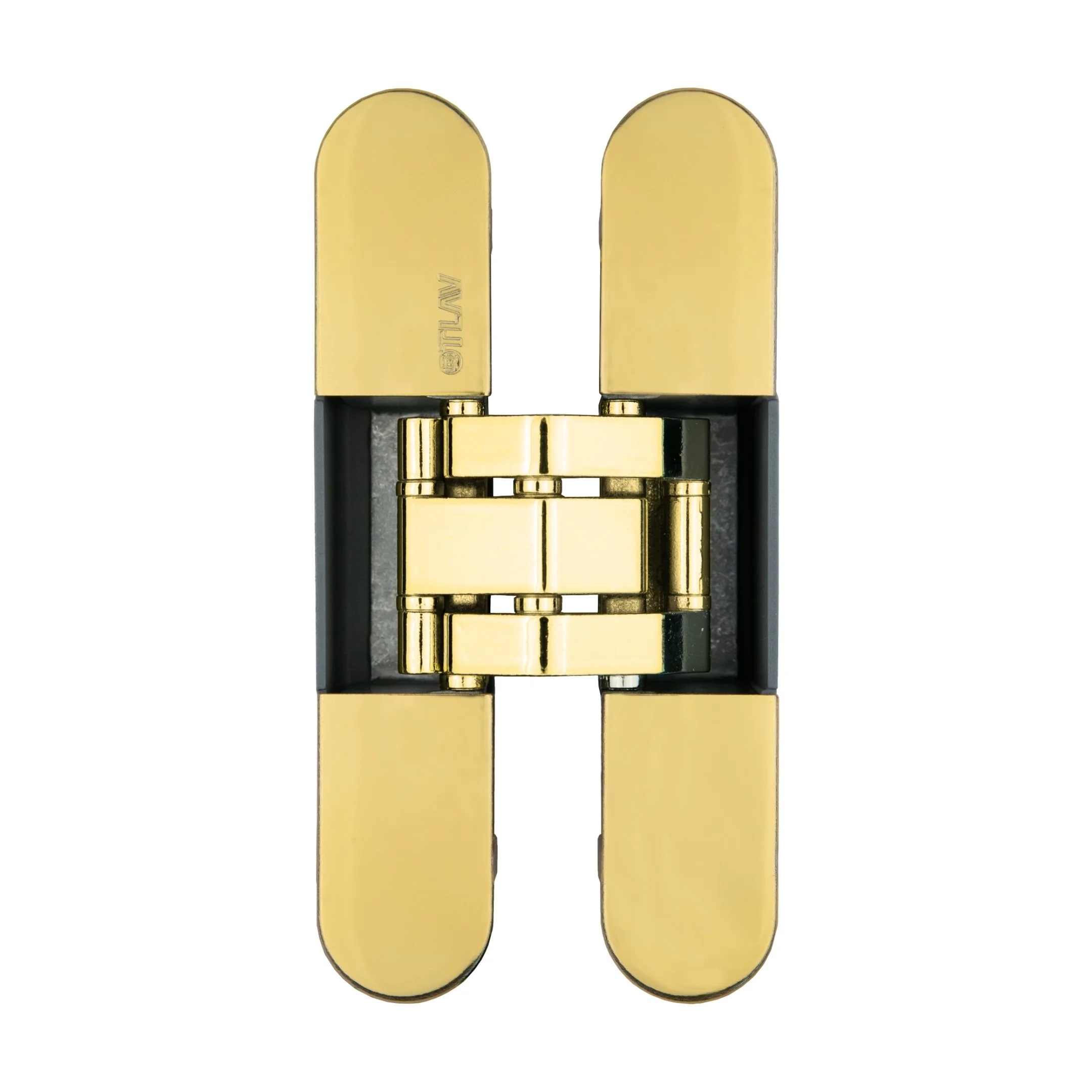

- Gold (Polished)

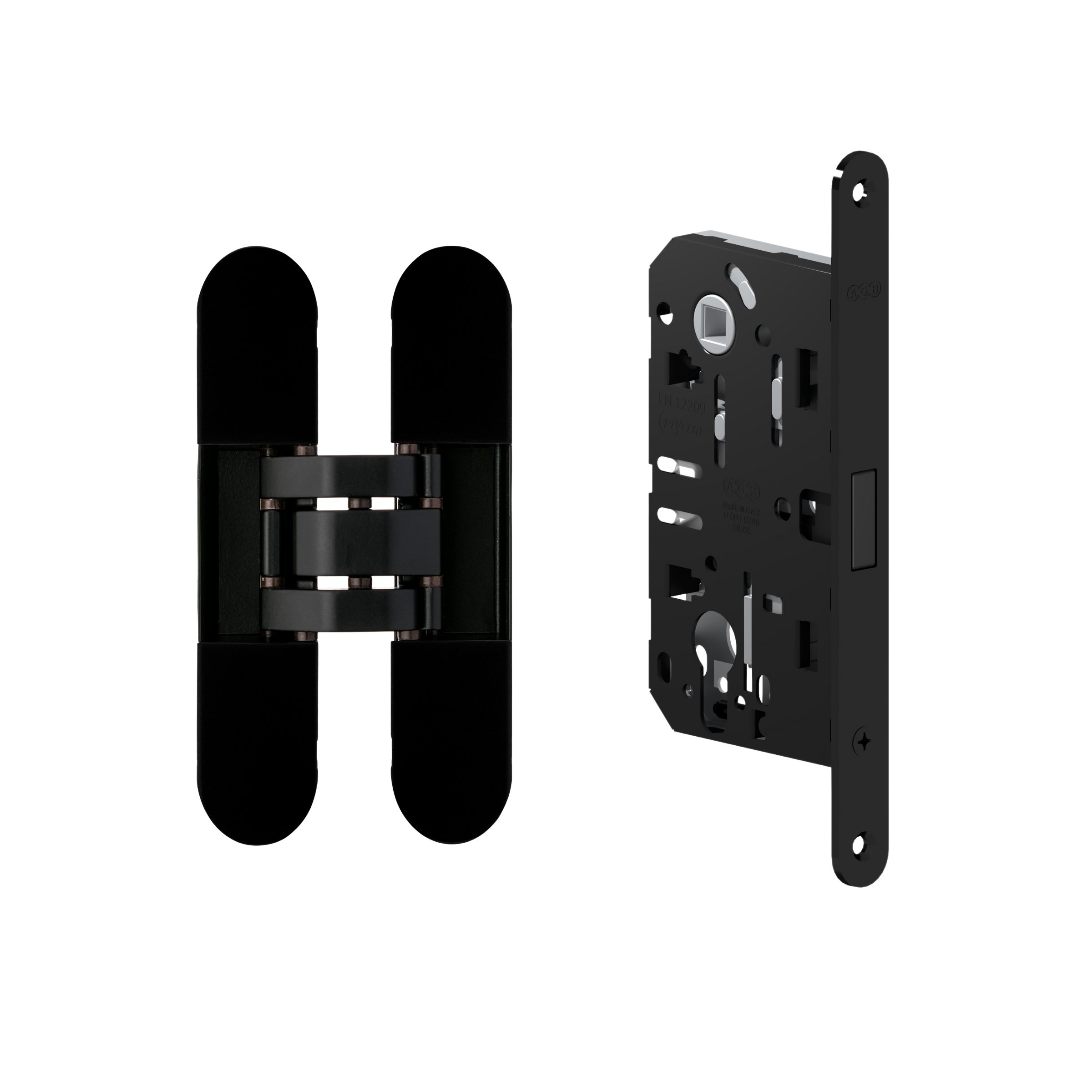

Magnetic Latches
A magnetic latch uses magnets to hold the door closed instead of a traditional spring latch.
Types of Latches:
- Handle (8mm spindle required)
- Thumb Turn (6mm spindle required)
- Cylinder (Euro cylinder lock required)
- Touch (Only available in Satin and Matt Black)

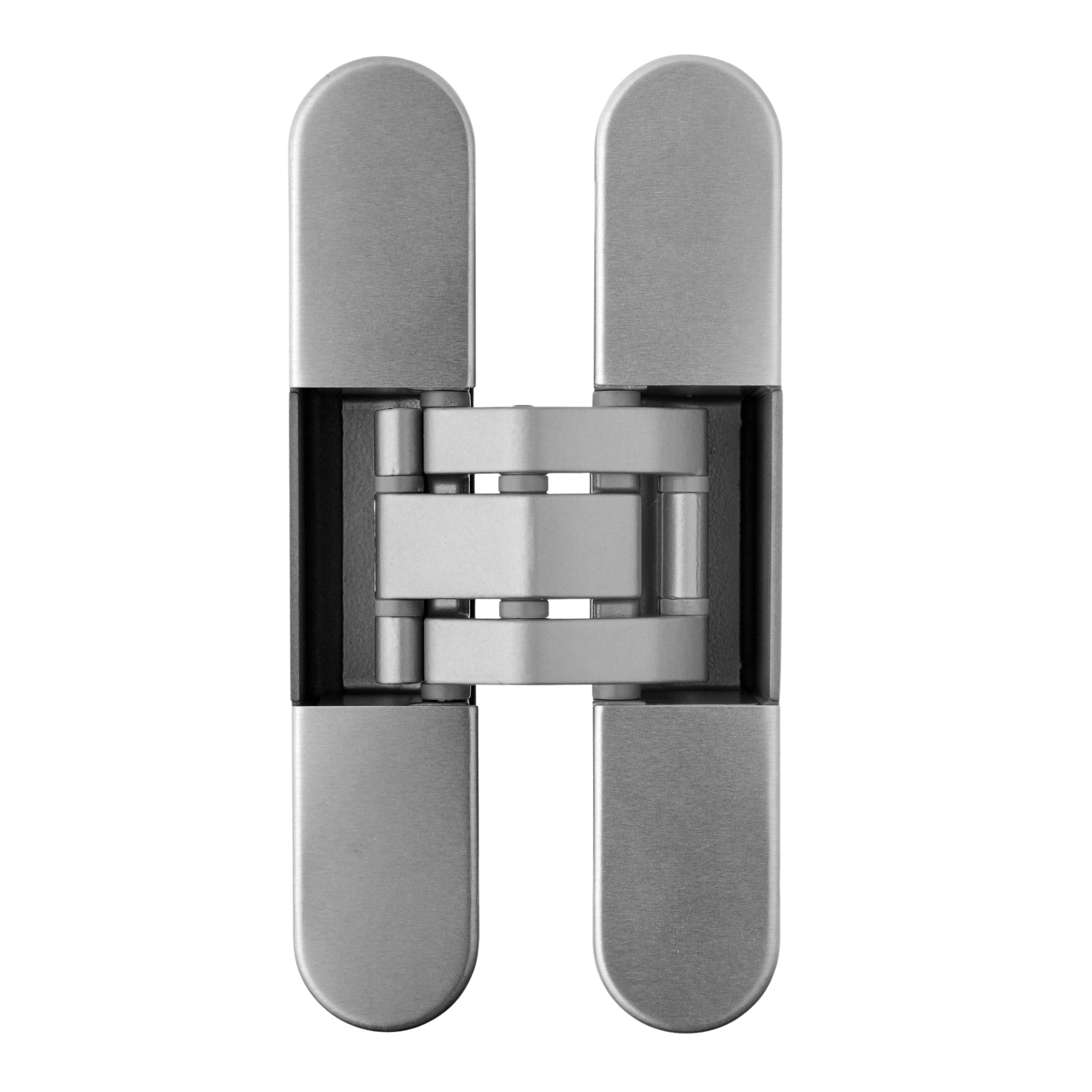

Hinges

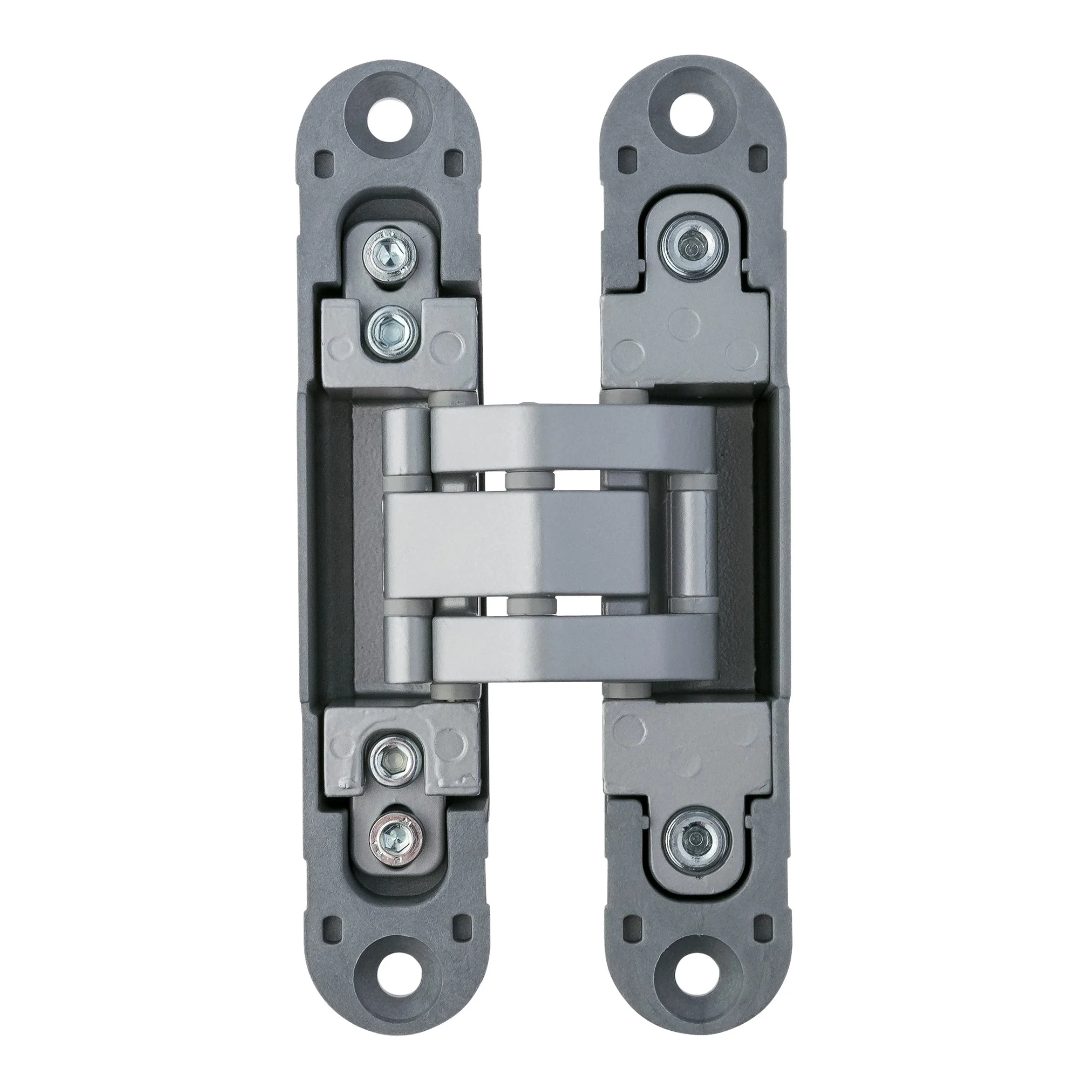

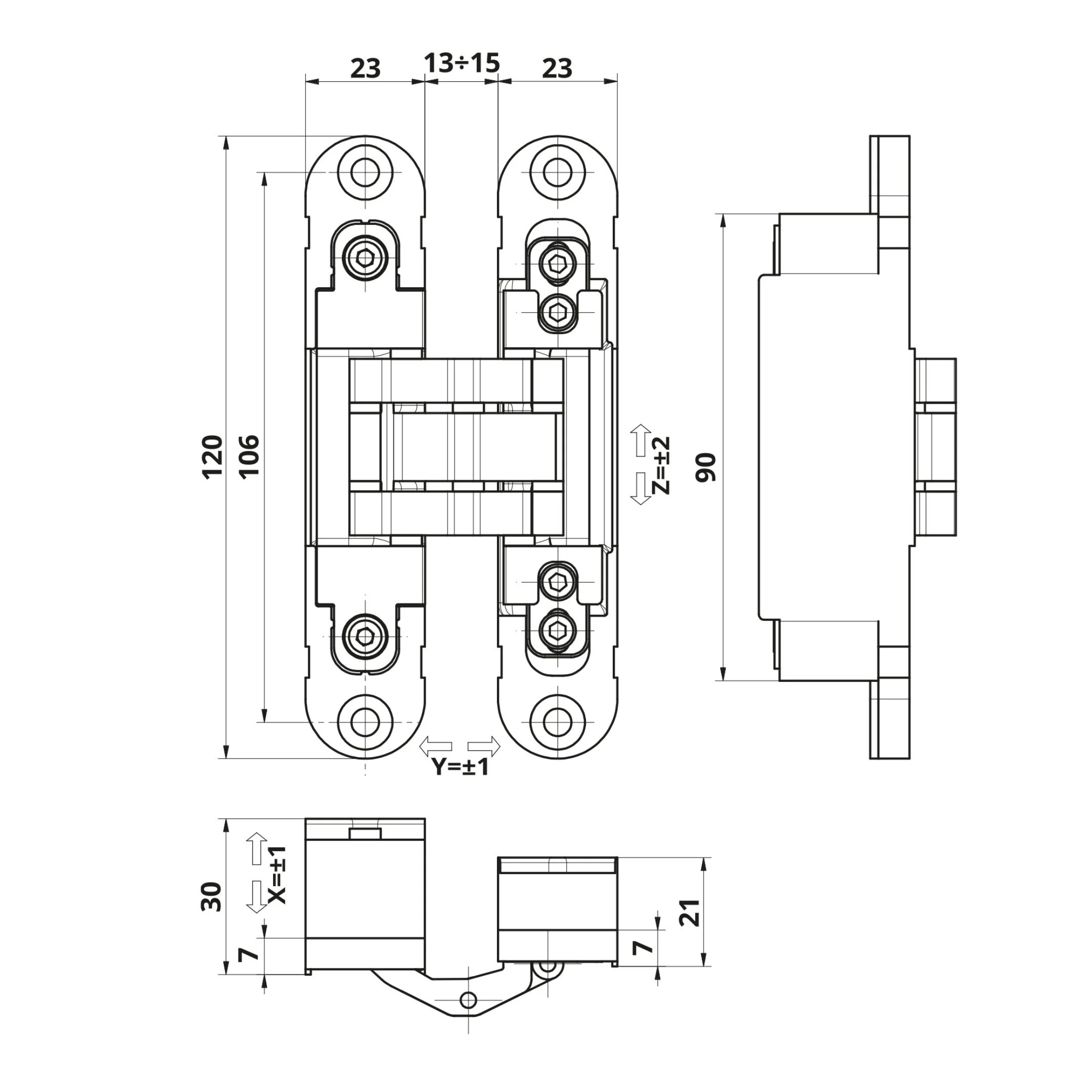

Our concealed hinge is a hinge that is hidden from view when the door is closed, giving a clean and modern appearance.
Manual Handling:
Fire doors and other solid core doors are heavy and should not be lifted by one person alone. Always use at least two people when handling doors.
Safe Storage
Store Doors
- Flat and level
- In a well-ventilated area
- In dry conditions
Never Store Doors
- On their edge
- Standing on end
- In wet or damp conditions
Keep stack heights safe to allow easy handling.
Avoid direct sunlight on stored doors, as this may cause fading or discolouration.
Stacking Doors Correctly:
- Use at least three load bearers for even weight distribution.
- Ensure bearers are wider than the door.
- Place the widest doors at the bottom.
- Store doors in the order they will be used to reduce unnecessary movement.
Avoid Moisture:
- Doors must not be stored or installed while wet trades are ongoing.
- Examples include plastering, screeding, or painting before surfaces are fully dry.
- Ensure all areas are fully dried before fitting or storing doors.
- Ensure all areas are fully dried before fitting or storing doors.
Fire Safety:
Timber products and packaging materials are combustible.
Store away from open flames and radiant heat sources. In the event of fire, use water to extinguish.
Packaging Disposal:
Dispose of polythene and packaging materials through trade recycling schemes or standard refuse collection services.
If you have any questions please call our team.
We offer delivery across the UK mainland. For deliveries to locations such as the Scottish Highlands, surrounding UK islands, or other remote areas, additional charges may apply.
If you are unsure about delivery options or costs for your location, please contact our office for assistance. We are happy to supply you with a quote.
Delivery Times
- Standard delivery service for Ultra Flush doors is 2-5 working days.
- Next working day delivery for our Ultra Flush - orders would need to be placed before 10:30am.
- You will receive a 2-hour delivery time slot on the day of delivery.
Returns
When the goods are delivered you have 48 hours to notify us of any discrepancies. No claims will be accepted after this time.
Due to the bespoke nature of these doors, these are a special item manufactured to order and therefore the doors are non-returnable unless due to manufacturing defects notified to us within 48 hours of delivery.
