Our pocket door frames are made galvanised steel, ensuring the best standard of door frame. Our frames are easy to install and have many great accessories you can add on.
See our stud work page for more information.
Key Features
Delivery
Instructions
This kit is suitable for:
- Doors 44mm thick
- Doors up to 60 kg in weight

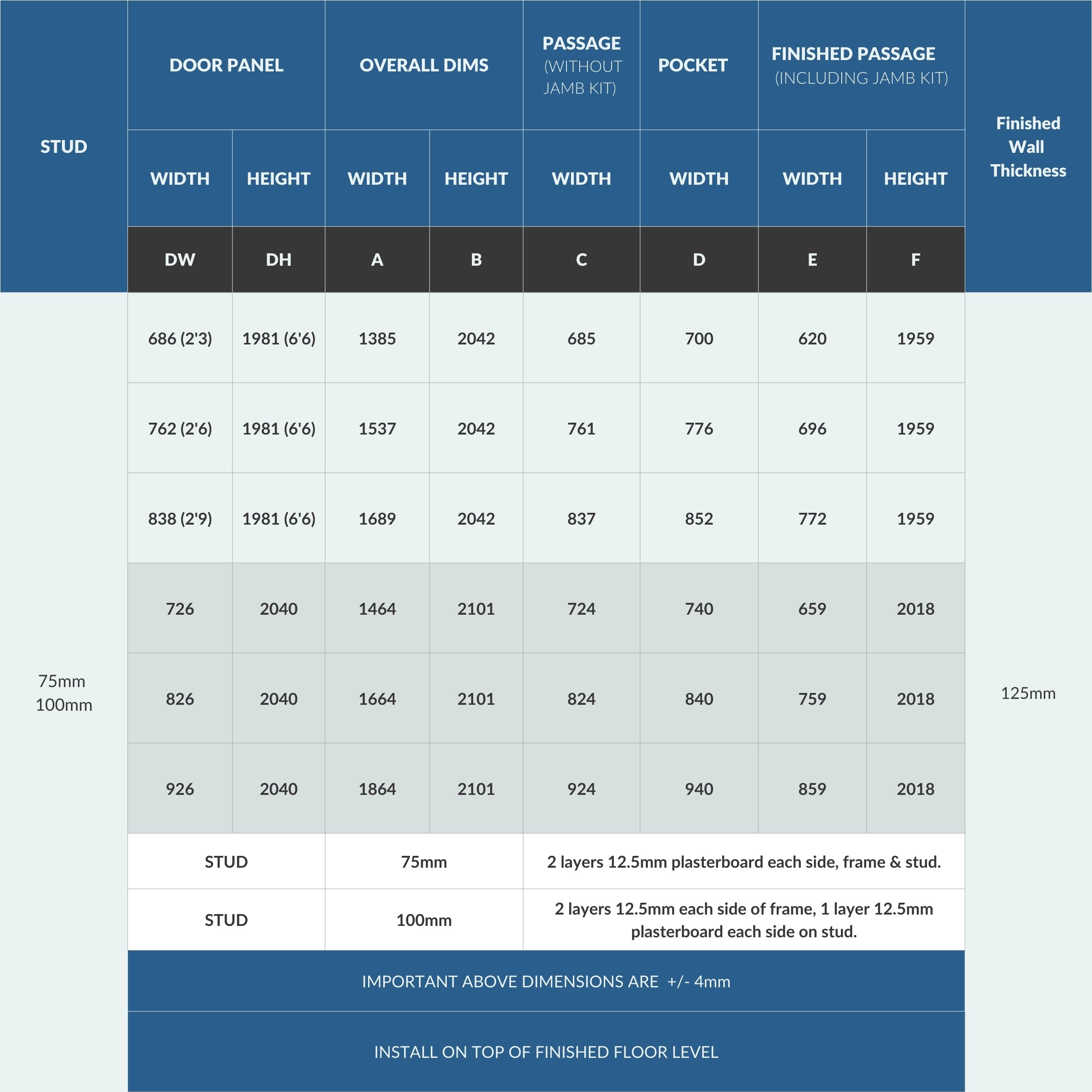

- 75mm or 10mm stud work (see dimension table.)
Kit Contents:
- A full Solid Oak FD30 approved jamb kit
- Intumescent pack. (Can be painted with fire resistant paint.)
- All the galvanised steel uprights and horizontals required to build the pocket, plus the track
- The brackets to fit the frame to the stud work that double as plasterboard positioners and supports
- Adjustable pocket entrance floor guide
- Runners with carbon steel 'sealed for life' bearings
- A spring steel door brake (30kg - 45kg soft close option available) Soft Close
What you need to supply:
- 44mm FD30 fire rated door panel, max weight 60kg
- Stud work to suit
- Plasterboard (See dimentions table.)
Please note that you will need to purchase Jeld-wen FD30 doors. These can be purchased at places such as: B&Q, Travis Perkins, Jewsons, Screwfix and many more.
