90mm Pocket Door Frame
from £139.95
Fits 89mm CLS stud work or 92mm steel stud work.
Compatible with our 115mm Jamb/lining kit.
Size:
Quantity:
Fits 89mm CLS stud work or 92mm steel stud work.
Compatible with our 115mm Jamb/lining kit.

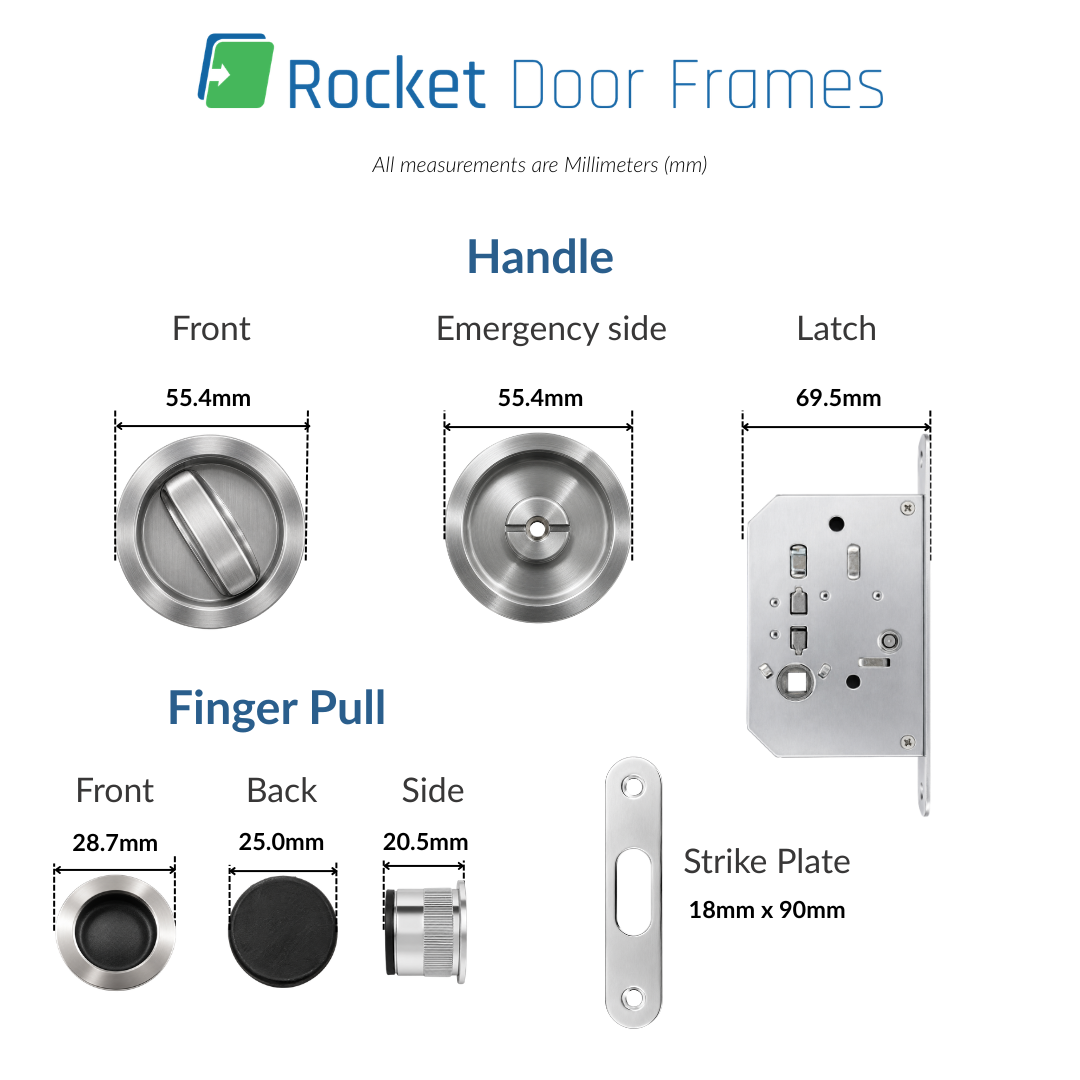

Round Satin Bathroom Lock
£24.95
Fits 89mm CLS stud work or 92mm steel stud work.
Compatible with our 115mm Jamb/lining kit.
Our pocket door frames are made galvanised steel, ensuring the best standard of door frame. Our frames are easy to install and have many great accessories you can add on.
See our stud work page for more information.
Key Features
Delivery
Instructions
This kit is suitable for:
- Doors 35-44mm thick
- Doors up to 60 kg in weight
- 89mm CLS or 92mm steel stud work
- 12.5mm standard plasterboard
- Double Pocket Doors: order two single frames (joining brackets included in each single kit)
Kit Contents:
- All the galvanised steel uprights and horizontals required to build the pocket, plus the track
- The brackets to fit the frame to the stud work that double as plasterboard positioners and supports
- Adjustable pocket entrance floor guide
- Runners with carbon steel 'sealed for life' bearings
- A spring steel door brake (soft close option available)
What you need to supply:
- Door Panel 35 or 44mm thick, max weight 60kg
- 89mm CLS stud work (see stud tab in images) or 92mm steel stud work
- Plasterboard
