75mm Pocket Door Frame
from £139.95
Pocket door frame for 75mm & 100mm timber stud.
Compatible with our 100mm or 125mm Jamb/lining kit.
Size:
Quantity:
Pocket door frame for 75mm & 100mm timber stud.
Compatible with our 100mm or 125mm Jamb/lining kit.
Pocket door frame for 75mm & 100mm timber stud.
Compatible with our 100mm or 125mm Jamb/lining kit.
Our pocket door frames are made galvanised steel, ensuring the best standard of door frame. Our frames are easy to install and have many great accessories you can add on.
See our stud work page for more information.
Key Features
Delivery
Instructions
This kit is suitable for:
- Doors 35-44mm thick
- Doors up to 60 kg in weight
- 75mm & 100mm timber stud work
- 12.5mm standard plasterboard
- Double Pocket Doors: order two single frames (joining brackets included in each single kit)
Kit Contents:
- All the galvanised steel uprights and horizontals required to build the pocket, plus the track

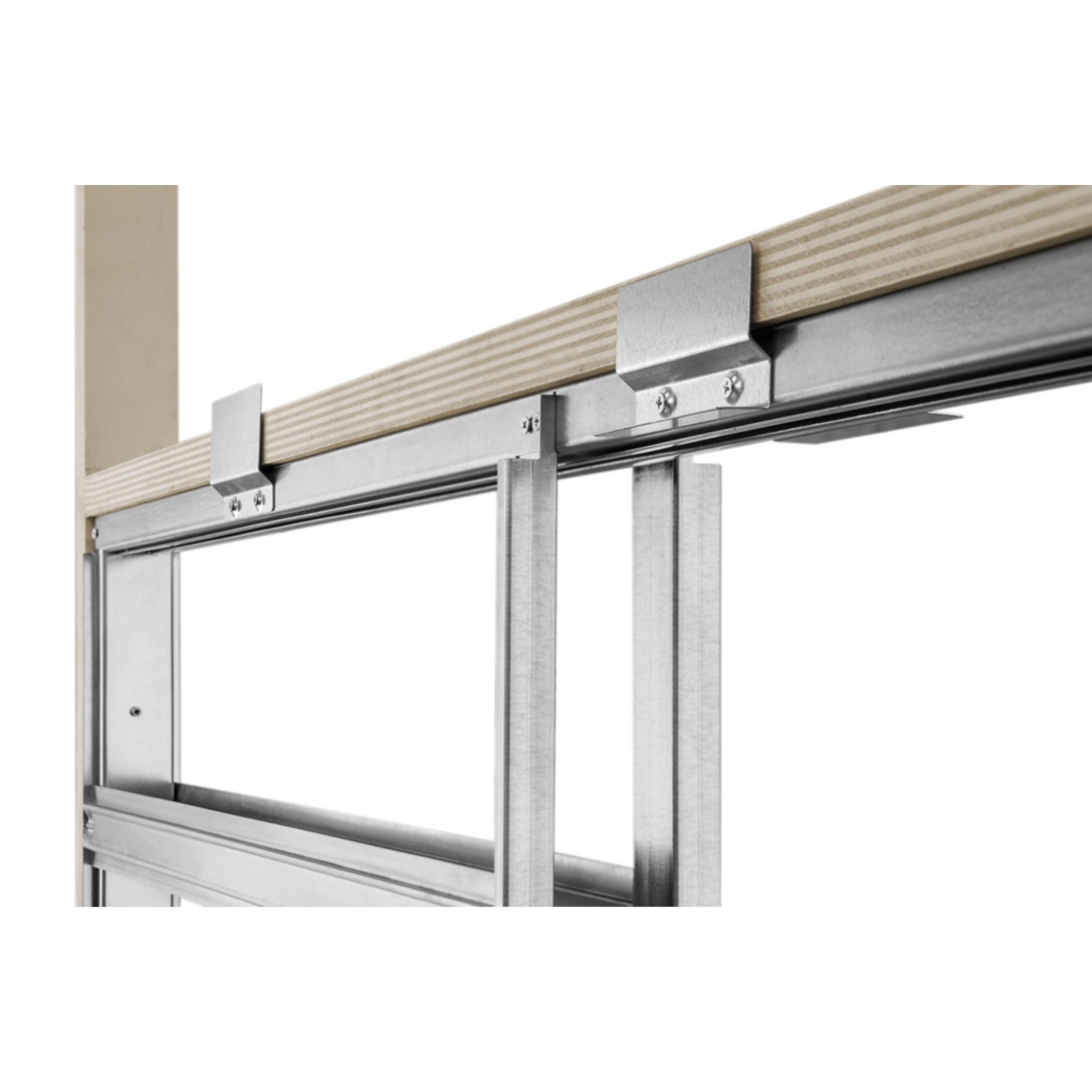

- The brackets to fit the frame to the stud work that double as plasterboard positioners and supports
- Adjustable pocket entrance floor guide
- Runners with carbon steel 'sealed for life' bearings
- A spring steel door brake (soft close option available)
What you need to supply:
- Door Panel 35 or 44mm thick, max weight 60kg
- 63mm CLS stud work (see stud tab above) or 70mm steel stud work
- Plasterboard
100mm stud work installation
- Prepare the Frame – If using a 75mm frame with 100mm stud work, first remove brackets H, I, and J from the materials.
- Position and Secure – Centralise the frame within the stud work. Pre-drill six holes into the track (part D), clear any debris, and test the rollers to ensure they move smoothly.
- Plaster boarding – Place a 12.5mm plasterboard sheet under the frame’s lip on both sides, aligning it with the 100mm stud work. Then, plasterboard as usual. Ensure the plasterboard above the door opening aligns with the bottom of the track.
